Description

This Product has been Discontinued

Fits: 1996-1997 Dodge Ram w/ 5.9L Cummins & 47RE Trans.

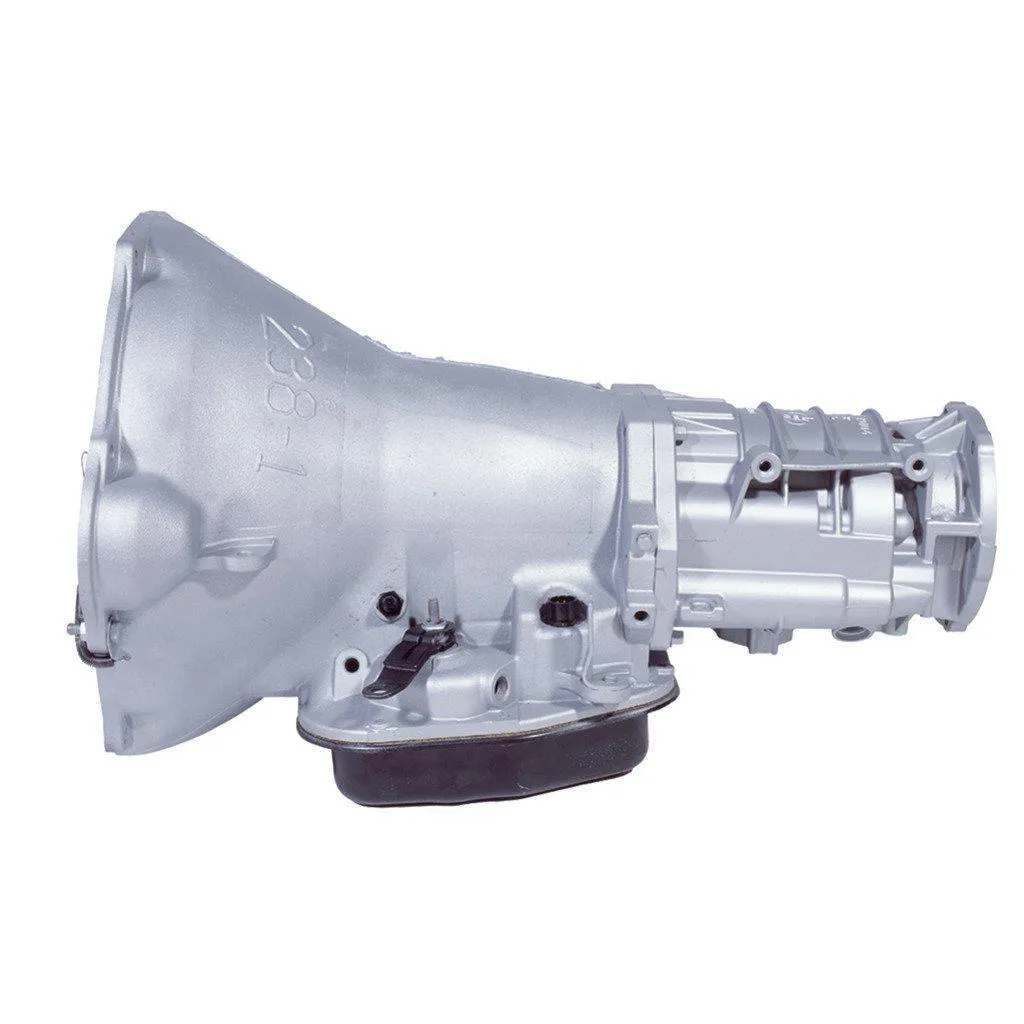

Want a transmission that was built to push the limits on the track and handle extreme horsepower and torque applications? Look no further than the BD 1065164F Stage 5 Track-Master "competition series". When BD combines the features of a "Big" fine spline input shaft, all billet shafts, billet steel direct drum, one piece servo/cover, an extra-wide solid band with red lining, racer red forward/direct frictions, and kolene forward/direct steel, you end up with a transmission that is rated for 650 RWHP and above. Also included are BD's very own heavy-duty transmission pan and auxiliary full-flow filter kit.

BD Diesel Part Number: 1065164F

Features

• Increase the durability of your drivetrain
• Stock thrust bushings replaced with roller Torrington bearings
• Every transmission is tested on a dyno
• Upgraded Valvebody
• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Drilled intermediate shaft for increased lubrication
• Modified manual valve for lube in all positions
• Billet barrel strut
• Billet band lever
• Billet dual ring accumulator piston
• Billet dual ring kick down servo
• Billet front drum
• Billet output shaft
• Billet intermediate shaft
• Billet "Big" fine spline input shaft
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 7
• An upgraded governor pressure transducer (47RE/48RE)
• An upgraded governor solenoid - Twice the burst pressure than stock
• An upgraded 48RE sunshell
• Cooler line case saver in every transmission
• BD auxiliary full flow filter kit for extra protection
• BD rigid aluminum heavy duty transmission pan
• Pan heat-dissipating fins keep the temperature down
• Magnetic drain plug
• Pan adds 2qt extra oil capacity
• Not warranted for Race or Sled Pull use

Notes

• "Big" fine spline converter required
• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty

Warranty

• 12-Months
• 24,000 Miles
